Introducing the Switchback
3157 7443 or 1157 LED Combination Amber and White LED Tower Bulbs
Two Colors - One Bulb
The Switchback Bulb is designed to light bright white when the running lights are on. When the turn signal is activated, the light will automatically instantly switch from white to amber, and flash. These are great for clear front turn signals and for meeting import standards on European made autos.
Note: Load Equalizers or a special flasher may have to be added to restore a normal blinker rate if switching a turn signal bulb to an led. We have specially modified flashers, or load equalizers available here:
Click here for LED Load Equalizers Led Turn Signal Fix
Click here for switchback wiring diagrams, installation and troubleshooting instructions
|
80 Watt Cree Led White-Amber Switchback LED Bulb 4x 5 Watt White Forward Facing+12X 5 Watt Amber Side Facing Leds Available in AO or AW (See Below). |
||||
 |
 |
 |
||
| AW |
3157 (21mm x 64mm) |
1157 (18mm x 55mm) |
7443 (20mm x 58mm) |
AO |
| $34.99 each | ||||
|
|
||||
|
Optical 22 Led Amber-White Switchback Bulbs (Available with either Conventional or CK Wiring) |
||
 |
||
| 1157 | 3157 | 7443 |
| $24.99 each | ||
|
|
||
| 60 Watt Optical Cree Led Amber-White Switchback Bulbs | ||
 |
||
| 1157 | 3157 | 7443 |
| $24.99 each | ||
|
|
||
|
50 Watt Cree Led White-Amber Switchback Bulbs 2x 5 Watt White Forward Facing+8X 5 Watt Amber Side Facing Leds Available in AO or AW (See Below). |
||||
|
|
 |
|
||
| AW |
3157 (21mm x 64mm) |
1157 (18mm x 55mm) |
7443 (20mm x 58mm) |
AO |
| $29.99 each | ||||
|
|
||||
| 3535 Optical Led Red-Amber Switchback Bulbs | ||
 |
 |
 |
| 1157 | 3157 | 7443 |
| $29.99 each | ||
|
|
||
| 2835 Optical Led Red-Amber Switchback Bulbs | ||
 |
||
| 1157 | 3157 | 7443 |
| $29.99 each | ||
|
|
||
|
120 Led White-Amber Switchback Bulbs 20mmX55mm |
92 Led White-Amber Switchback Bulbs 25mmX65mm |
60 Led White-Amber Switchback Bulbs 20mmX52mm Available in two styles AO and AW. Also available with CK wiring (see below). What is CK wiring ? |
39 Led White-Amber Switchback Bulbs 20mmX52mm Available in two styles AO and AW (see below). |
|||||||
 New Smart-Drive Technology |
New Smart-Drive Technology |
|||||||||
 |
 |
 |
|
|||||||
| 3157 | 7443 | 1157 | 3157 | 1157 | 3157 | 7443 | 1157 | 3157 | 7443 | 1157 |
| $34.99 each | $29.99 each | $29.99 each | $19.99 each | |||||||
|

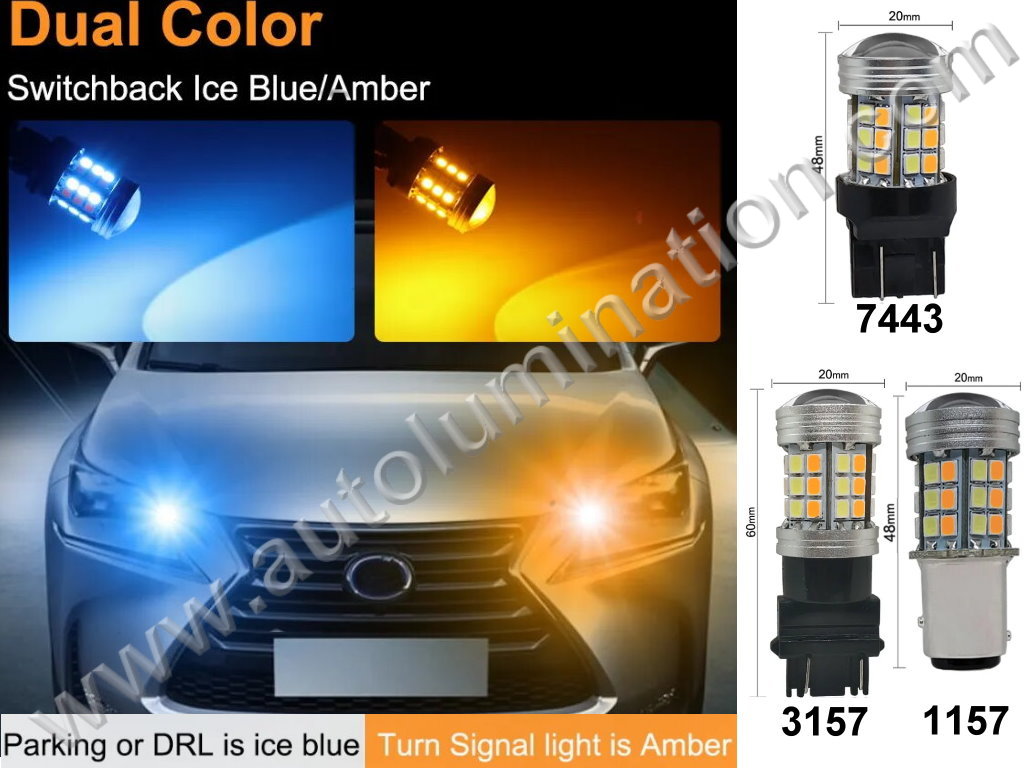

45 SMD Led Ice-Blue-Amber Switchback Bulbs 2x 2835 Watt Blue Forward Facing + 6X 2835 Amber Forward Facing, 45 Total Leds |
||
| AO - Type 2 Switch Backs | ||
 |
||
| 3157 | 1157 | 7443 |
| $29.99 each | ||
New Smart-Drive Technology
Don't be fooled by counterfeits, these are not available anywhere else!
These have our exclusive patented circuitry with smart technology that allows each the intensity of each led to be 100% greater than other led bulbs, without overdriving and damaging the leds.
|
|
|
|
|
|
|
|
 |
|
|
|
|
| 20 Led Tower II | 30 Led SMT Tower Style (25% brighter) | 48 Led SMT Tower Style (25% brighter) | ||||||
| 1157 metal bayonet base | 3157 plastic wedge base |
7443 plastic wedge base Note: The 7443 20 led switch back has a 1" diameter head and is larger than the standard 3/4" 7444 bulb head. Please be sure to measure your housing to make sure that the 1" diameter head will fit thru the hole in the housing. |
1157 metal bayonet base |
3157 plastic wedge base |
7443 plastic wedge base Note: The 7443 30 led switch back has a 3/4" diameter head so it fits all standard 7443 housings.
|
1157 metal bayonet base | 3157 plastic wedge base |
7443 plastic wedge base Note: The 7443 48 led switch back has a 3/4" diameter head so it fits all standard 7443 housings.
|
| $20.99 each | $25.99 each | $27.99 each | ||||||
60
Led Switchback Two Colors - One Bulb
 |
 |
|
|

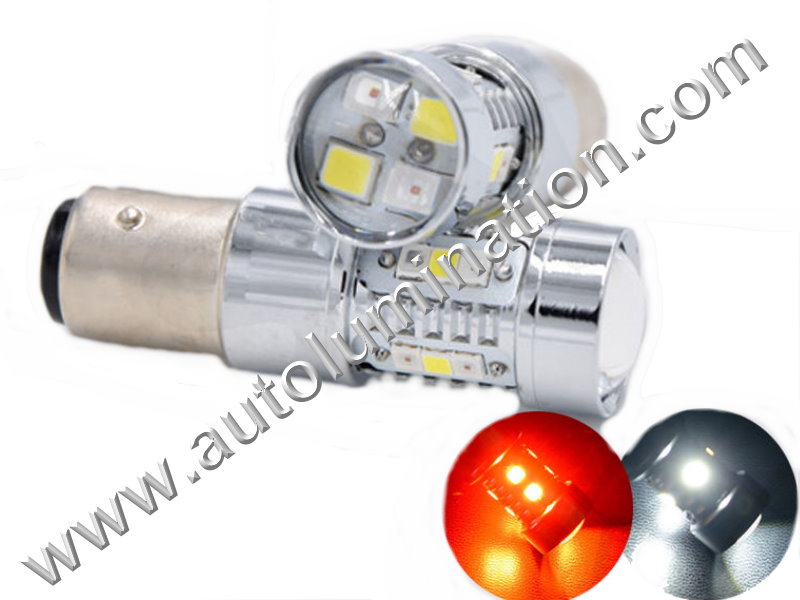

| Amber-White (AO) | Red-White (RO) | Red-Amber | |
|
|
 |
||
| 3157 | 1157 | ||
| 60 LED | |||
| $24.99 Each | |||
48
Led Switchback Two Colors - One Bulb
|
|
|
|
|
| Amber-White | Orange-White | Amber-Red | Red-White |
|
48 LED |
|
|
| 3157 | 1157 | ||
| $14.99 Each | |||
|
|
|
|
||

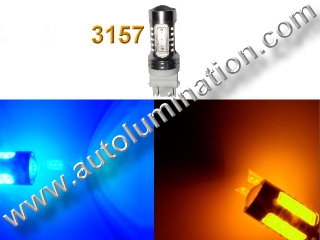

| White Switches to Amber (AW) | White Switches to Red (RW) | Red Switches to Amber (AR) | Blue Switches to Amber (AB) | ||
| $20.99 Each | |||||
|
|
|
|
|||
| 3157 | 1157 | 7443 | |||
| 20 Led (25mmX58mm) | 18 Led | ||||
194
Led Switchback Two Colors - One Bulb
| *** IMPORTANT *** Note: Please understand what you are purchasing before you buy this item. It is not a plug and play bulb in most vehicles. We will not issue any refunds on this item. No Exceptions !!!!!! |

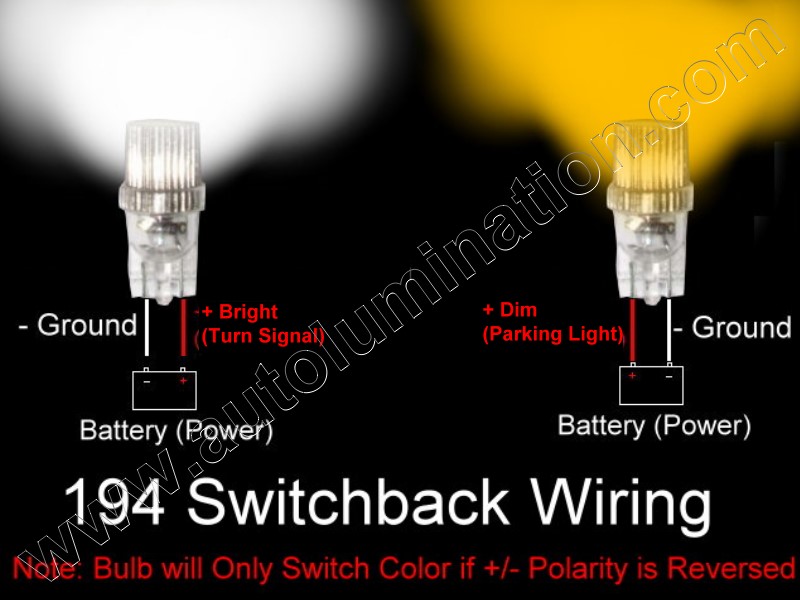

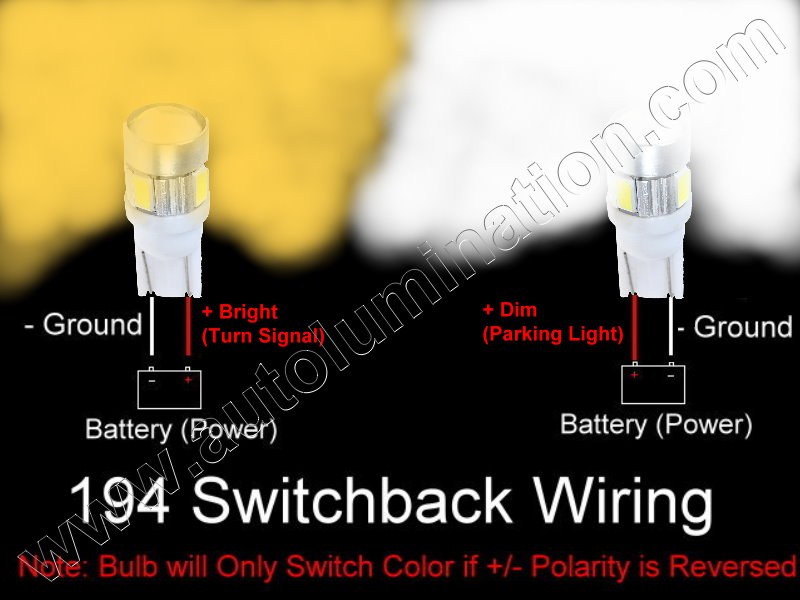

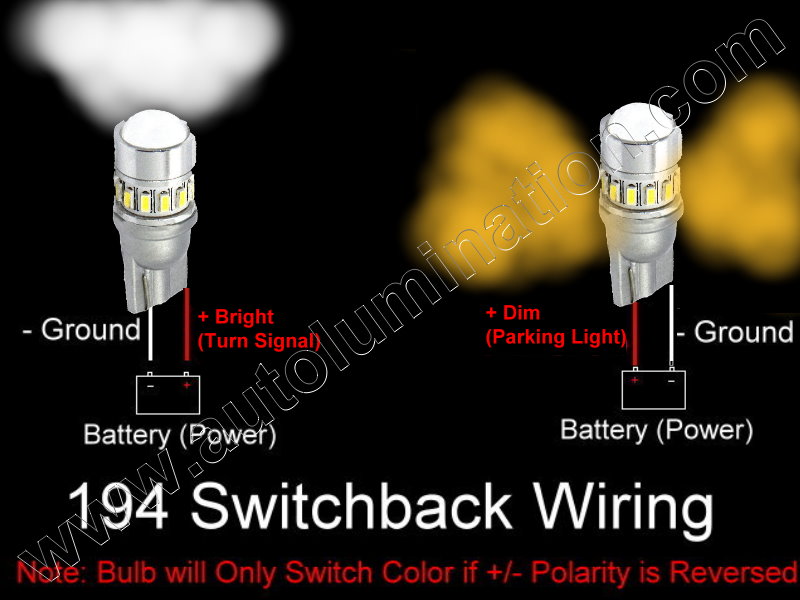

| The #194 bulb and socket is a single circuit arrangement. There are only two wires going to this bulb (socket). One is (+) the other is (-). The bulb will only switch colors if/when the (+/-) polarity to the bulb is reversed. While a few vehicles automatically reverse polarity to the side marker bulb when the turn signal is activated, most do not. In most vehicles a relay and or other circuitry will be required to make this bulb change colors by swapping the +/- polarity to the bulb. |
|
 |
| Amber-White | |
|

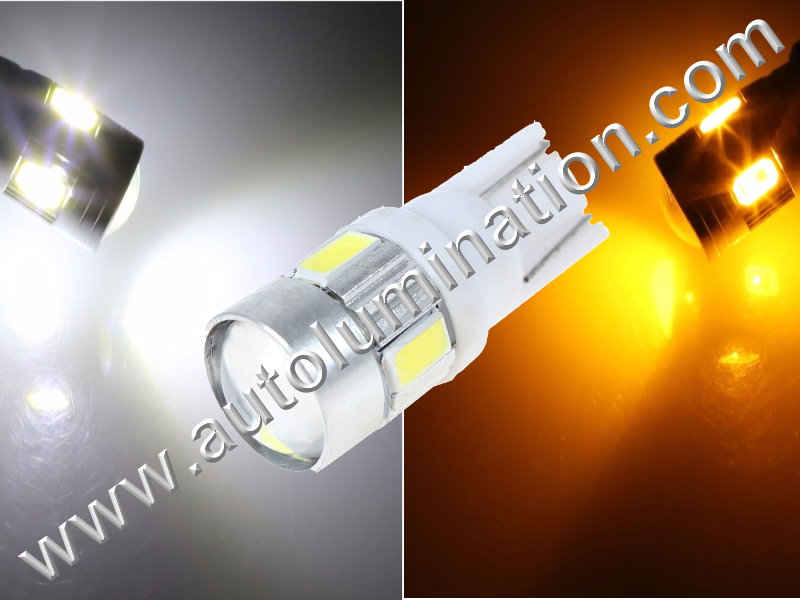

5630 6 LED LED Optical |
|
| 194 | |
| $9.99 Each | |
|
 |
| Amber-White | |
|

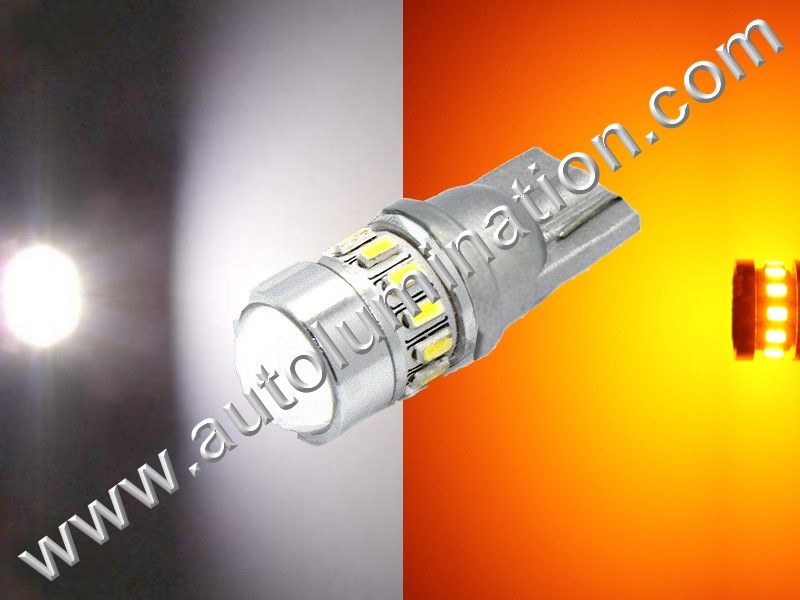

3014 18 LED LED Optical |
|
| 194 | |
| $9.99 Each | |
|
 |
| Amber-White | |
|

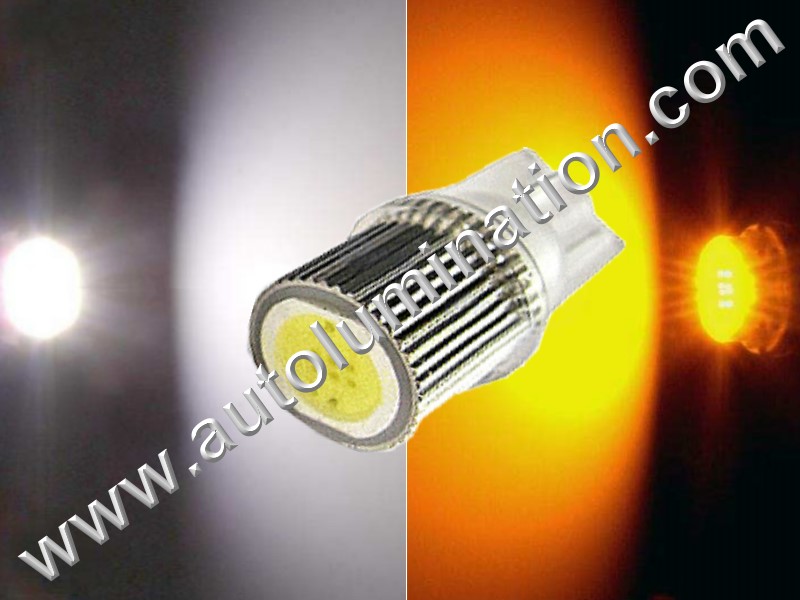

2 Watt Superstar LED |
|
| 194 | |
| $6.99 Each | |
 |

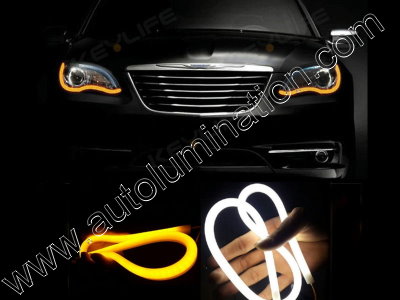

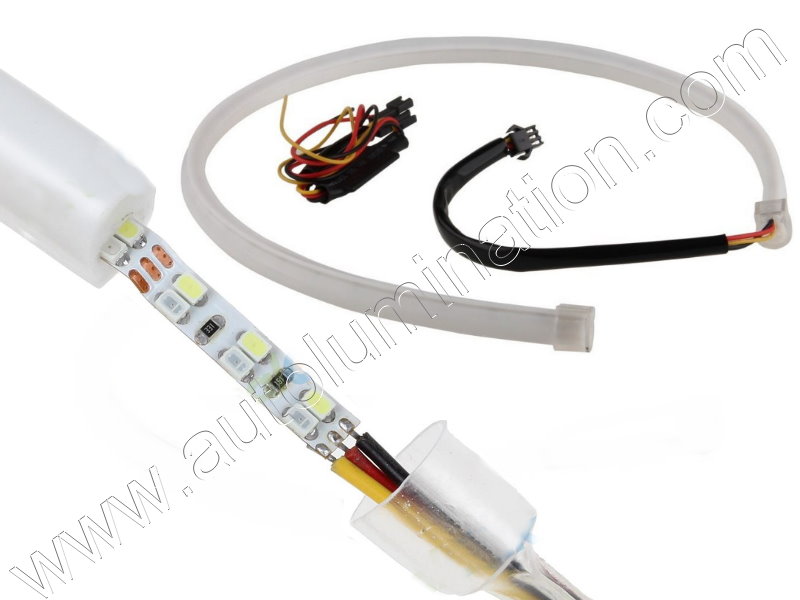

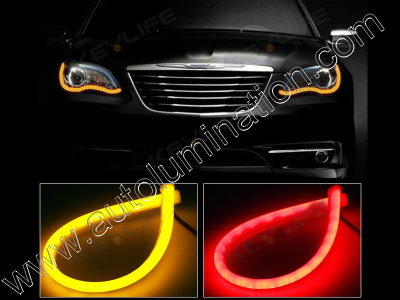

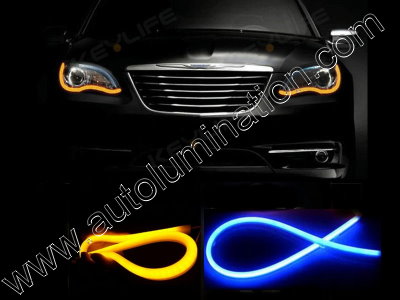

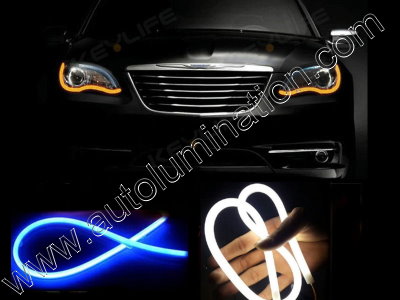

Switchback Dual Color Led Strips |
|
 |
|||||
| Opaque Cover for even light distribution. Choose 30, 45 or 60 cm length. Length can be cut/shortenend. | ||||||||
| Outfitted new 3014 SMD leds which are 40% brighter. | ||||||||
| Hover Over, Click (2x) or Double Click (3x) Image to Enlarge | ||||||||||||||
|
|
|
|
|||||||||||
| Amber-White | Blue-White | Red-Amber | Blue-Amber | |||||||||||
|
||||||||||||||
|
|
||||||||||||||
18
Led Switchback Strip
 |
 |
 |
|
| AW | AO | ||
|
18x 5050 LEDS - 30CM |
|||
| $19.99 Each | |||
|
|

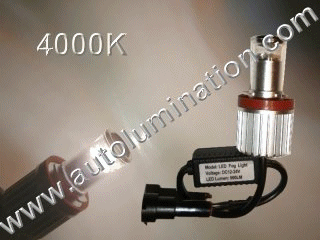

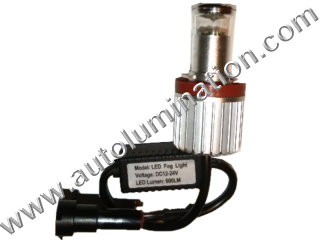

35 Watt Switcher Color Changing Canbus Led Fog light DRL Bulbs |
|
These bulbs can be switched to light any of three
colors using your existing light switch. Switch on once = 4000K White Switch on and off again = 6000K White Switch on and off again = Amber Choose 12 Volt or 24 Volt Automatic Canbus Cancellation to Eliminate Canbus Bulb Out Warning Errors |
| Led switcher color changing headlight foglight head light fog bulbs |
| Super-Power 35 Watt Led Bulbs |
|
 |
|||
| Selectable 3 colors 6000K White-4000K White - Amber in one bulb | ||||||
| Outfitted with 2X amber leds + 2x white leds. Fully regulated to prevent voltage related failures. Heat sink for cooling high powered leds. | ||||||
|
Hover Over, Click (2x) or Double Click (3x) Image to Enlarge | ||
 |
 |
|
| 4000K White | 6000K White | Amber |
| Order Switcher Led Bulbs (shown above) | $34.99 ea. | |
|
Note: There are two styles of Amber/White switchback bulbs: 1. AO - Amber - Off 2. AW - Amber - White |
|
| Operational description | Animation |
|

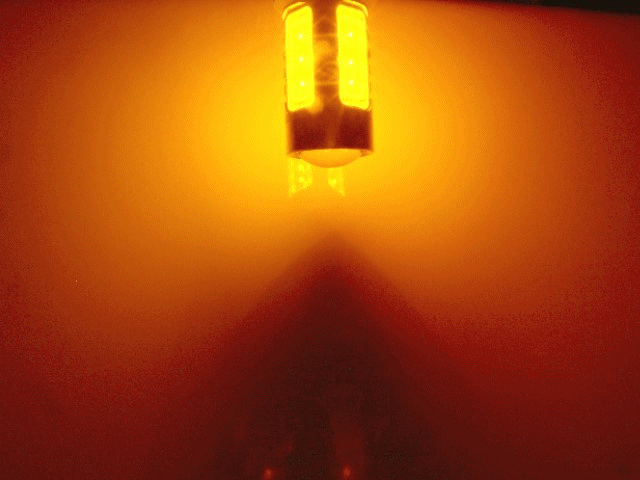

AO - Amber - Off The Amber -Off (AO) Switchback bulb has special circuitry inside that senses when there is voltage on the (amber) turn signal circuit. Whenever there is voltage on the (amber) turn signal circuit, the bulb switches off power to the (white) running light circuit for 2 seconds. The result is that in most vehicles, the switch back bulb will flash amber-off-amber off whenever the turn signal is activated, even when there is power to the (white) running light circuit. The bulb will switchback to white if the headlights are switched on and the turn signal circuit is switched off for 2 seconds. The bulb will switchback to off if the headlights are switched off and the turn signal circuit is switched off for 2 seconds. The result (in most vehicles) is shown in this animation with the headlights on. |
|
|
AW - Amber - White
The Amber -White (AW) Switchback bulb has special circuitry inside that senses when there is voltage on the (amber) turn signal circuit. Whenever there is voltage on the (amber) turn signal circuit, the bulb switches to amber mode. The result is that in most vehicles, the switch back bulb will flash amber-white-amber-white, whenever the turn signal is activated and the headlights are on. In some vehicles, the power to the (white) running light circuit is automatically switched off whenever the turn signal is activated. In these cases, the AW switchback will flash amber-off-amber off whenever the turn signal is activated. In most vehicles, the AW switchback will flash amber-off-amber off whenever the turn signal is activated and the headlights/running lights are off. The AW switch back bulb as it will operate (in most vehicles) is shown in this animation amber-white-amber with the headlights on. |
|
Click here for switchback wiring diagrams, installation and troubleshooting instructions
|
|
| 3157 Led White-Amber Switchback Bulb Wiring | 3157 Led White-Red Switchback Bulb Conventional Wiring |
UPIC Shipping Insurance
Note: Our packages are not automatically insured against loss during shipping. Insurance is the responsibility of the purchaser!
$2.00 for each $100 unit of insurance
Shipping Insurance
$2.00 per $100
